Nova AC Charger
An elegant, high-tech AC station designed to integrate seamlessly into the infrastructure of residential complexes, business centers, administrative buildings and shopping malls.
Made in KZ | CT-K3
This elegant station is a perfect fit for installation in public locations across your city.
Versatility
Simultaneous charging of two electric vehicles.
Power output
AC power up to 22 kW with any connector type.
Design
Clean design with an intuitive interface.
Reliability
All-weather steel enclosure with powder coating.
Design
An elegant station with custom styling that matches the company's architectural style and brand guidelines.
Station advantages
Ease of use
Color-coded indication makes it easy to identify the current charging status.
High quality
One of the best charging units on the market, combining functionality with ease of installation.
Reliability
A high level of protection for users and the electric vehicle against high voltage, plus a wide operating temperature range.
Maximum value for your business
The station can be equipped with AC GBT and Type 2 connectors, enabling simultaneous charging of up to 2 vehicles.
RFID and NFC authentication
User identification by RFID card works even without an internet connection. NFC authorization is additionally supported.
Technical specifications
Basic information
- Enclosure protection
- IP54 / IK10
- Operating temperature
- -30 °C to +50 °C
- Dimensions
- 1200 × 460 × 260 mm
- Protection
- Over Voltage, Under Voltage, Over Temperature, Over Current
- CPMS Connection Protocol
- Open Charge Point Protocol
- Network interface
- Ethernet, WiFi, 4G LTE (Optional)
- Standards
- IEC 62996-2, IEC 61851-1, National Standards
- Storage temperature
- -40 °C to +60 °C
- Operating humidity
- 5 % to 95 % Non-condensing
- Weight
- up to 45 kg
- Interface
- Addressed LED Strip
- RFID, NFC Reader
- Optional
- AC connectors
- 2 x Type2 or GBT AC
- Optional
- Heating system, Opening alarm
Electrical specifications
- Power consumption
- 3-phase AC 50/60Hz
- AC output power
- 2 × 7kW (1x32A), 2 × 22kW (3x32A), 7kW (1x32A) + 22kW (3x32A)
Documentation
User manual
Brochure
Charging stations
Foton DC Charger
The Foton DC charging station is designed for fast and convenient charging of any electric vehicle model.
Learn more

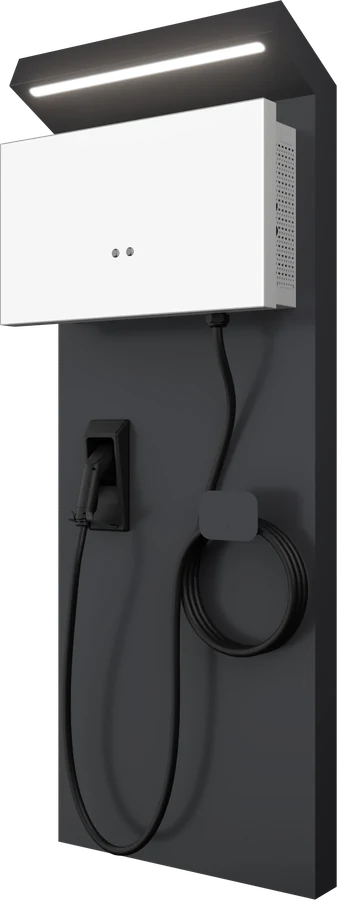

Quant DC Charger
